BONFIGLIOLI RLD-400A

" In-line leak testing machine for filled aerosol cans "

The Leak Testing Machine is used for in-line Non-Destructive Form/fill/seal Stick Pack Closure Integrity Testing. It uses the Force Decay Measurement Method which is accomplished respectively by Container lanes smooth-pressing and successive position level acquisition. The Container lane proportional reaction is then corresponding to the Container status. Following Leak Testing process, the Containers are automatically unloaded from Testing Area and they are managed according to the result. Whether the result is Conforming or Non Conforming, the HMI clearly displays the status.

DOWNLOAD PDF

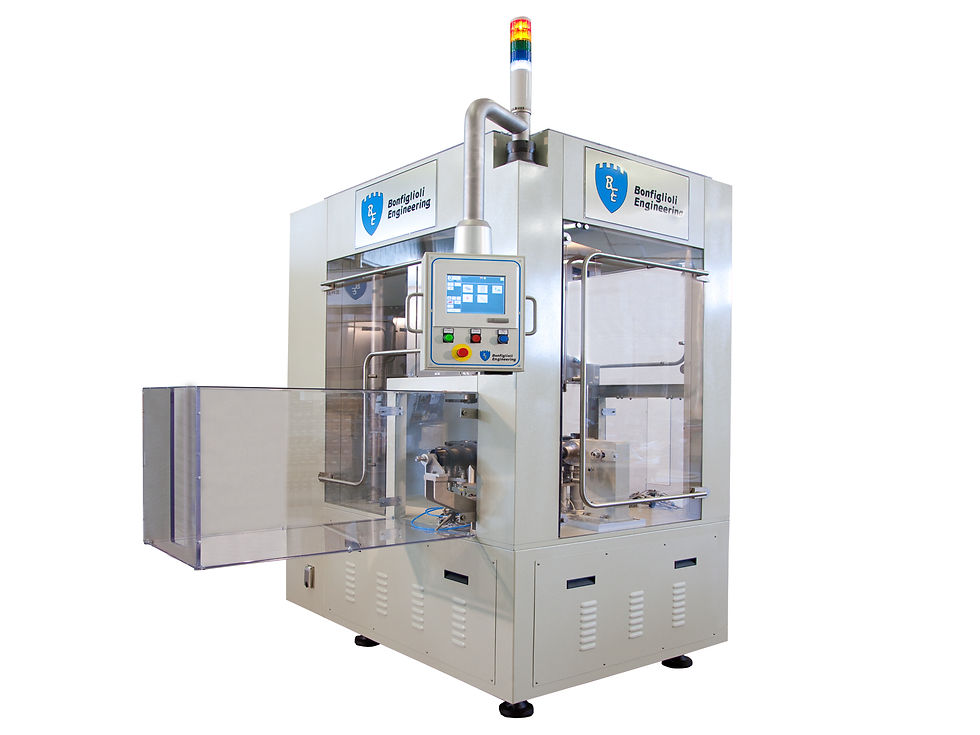

RLD-400A RIGHT
RLD-400A RIGHT
press to zoom
RLD-400A LEFT
RLD-400A LEFT
press to zoom

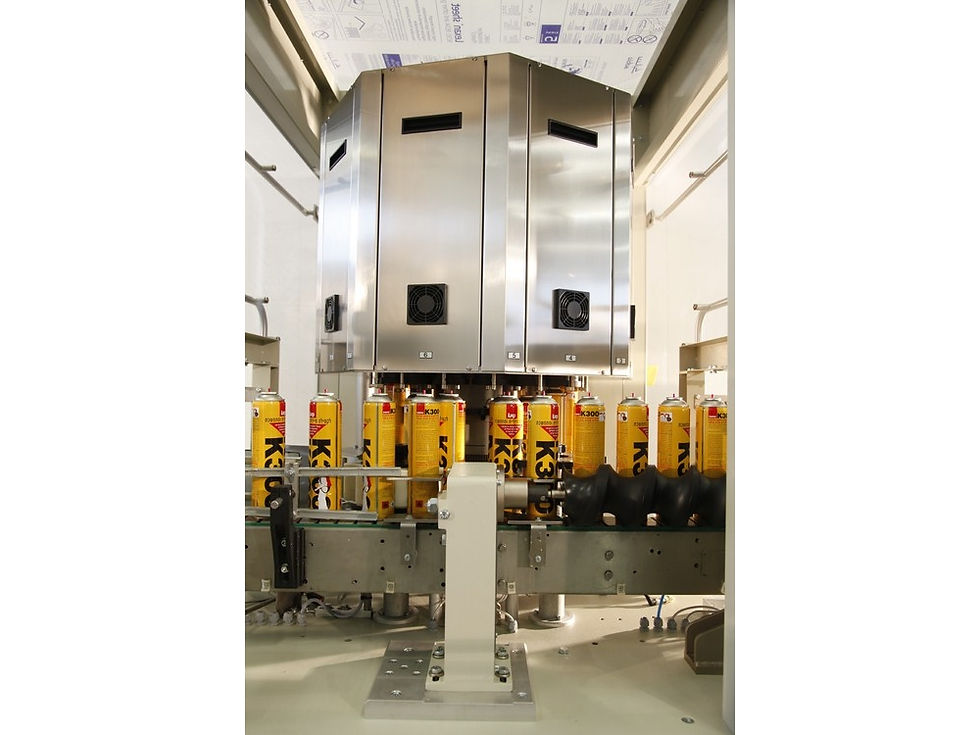

RLD-400A Main Carousel
RLD-400A Main Carousel
press to zoom

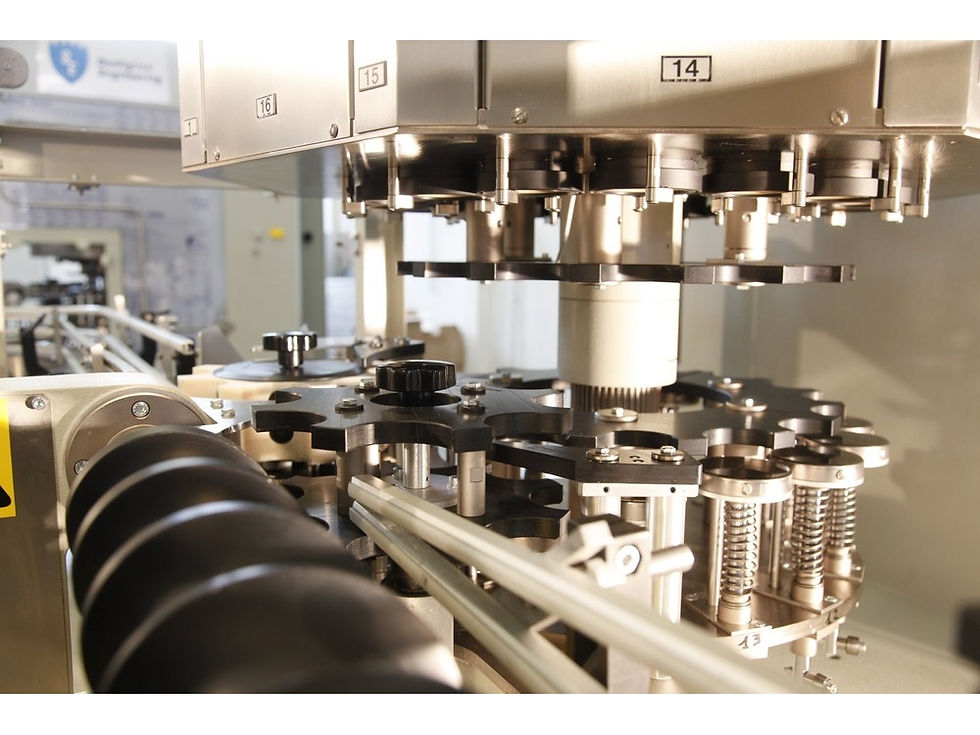

RLD-400A Internal Carousel
RLD-400A Internal Carousel
press to zoom

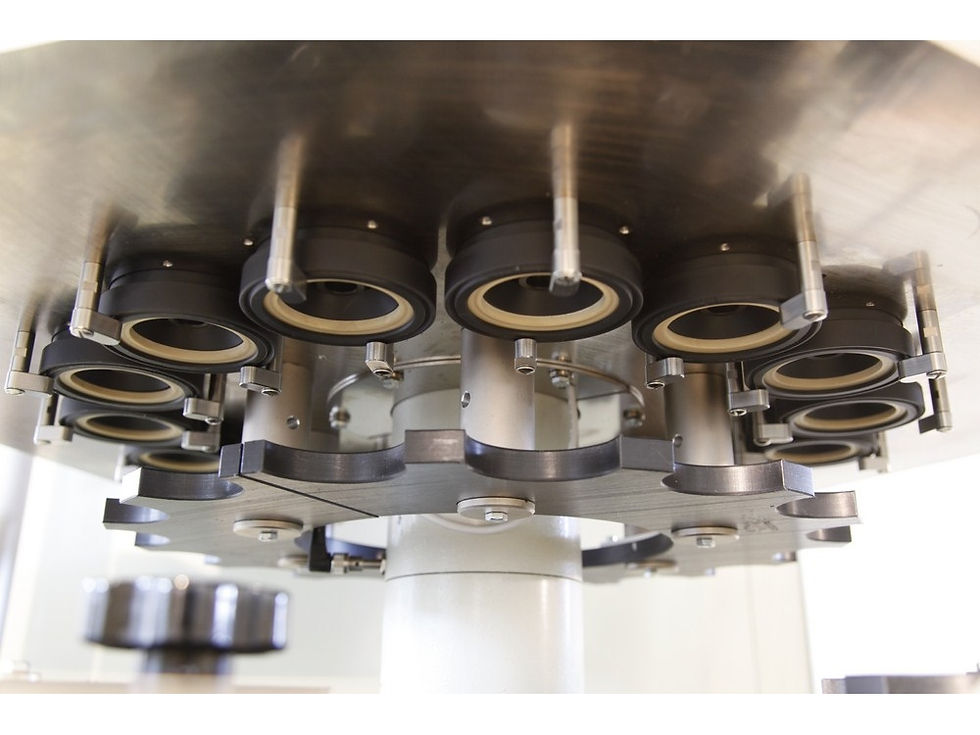

RLD-400A Pockets
RLD-400A Pockets
press to zoom

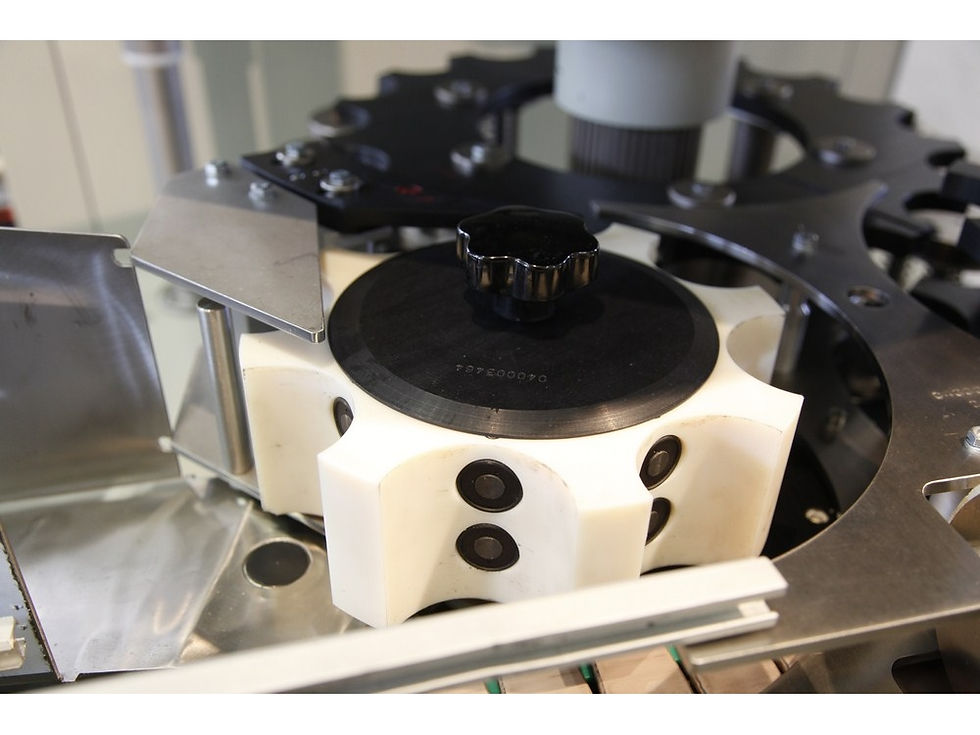

RLD-400A Magnetic Star
RLD-400A Magnetic Star
press to zoom
RLD-400A Carousel
RLD-400A Carousel
press to zoom

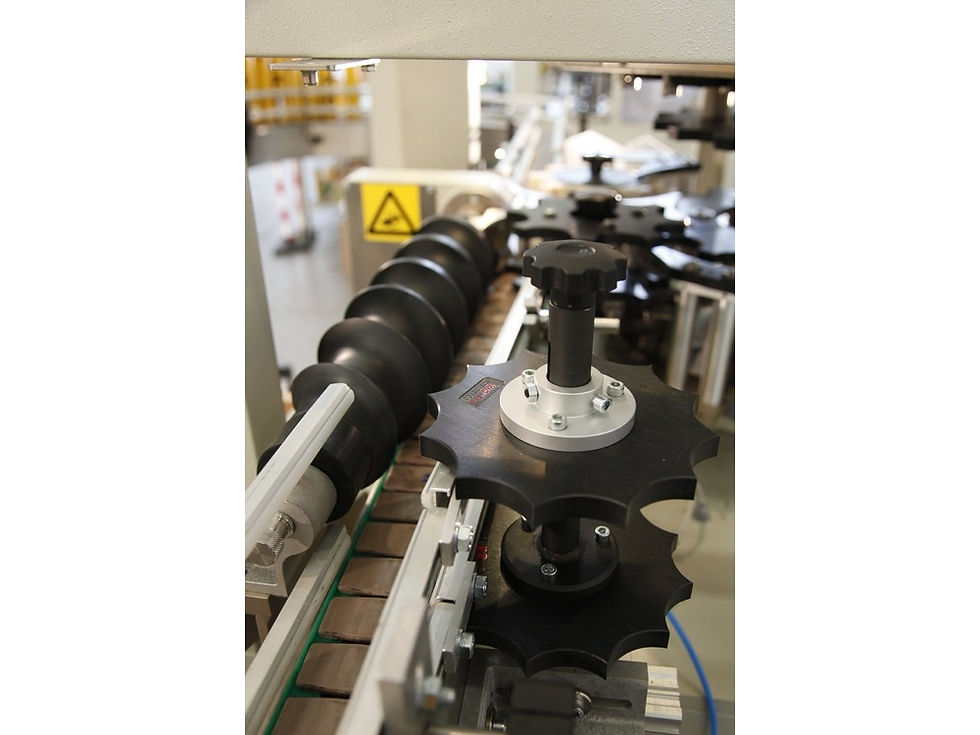

RLD-400A Can Stop
RLD-400A Can Stop
press to zoom

Technical Specifications

Tested Container :

Container Filling :

Container Content :

Machine Type :

Testing Methods :

Max Speed :

Min. Container Dimension :

Max. Container Dimension :

Testing Heads Number :

Monobloc

Filled

Liquid

Rotative leak tester

-

200

35 x 35 x 70

65 x 65 x 330

Data available upon request
